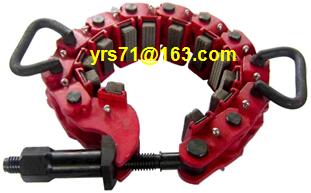

WA-C Safety Clamps helps guard against dropping flush-joint
pipe, streamlined drill collar, etc. into hole while making up
or breaking-out the string, and give protection against fishing
jobs.
WA-C Safety clamps consists of individual links that are hinged
together, each link has a separate tapered slip which acts as a
gripping member. By adding or removing links, the safety clamps
can handle different sizes pipes. All parts of safety clamps are
made of alloy steel, heat-treated for strength and gripping
ability
Multi-link design of safety clamps provides uniform pressure
around pipes to minimize the risk of crushing thin-walled pipe
or damaging pipe surface.
  |
|
Model |
Pip OD (in) |
Links |
|
T |
1⅛~2 |
4 |
|
2⅛~3¼ |
5 |
|
C |
3½~4½ |
6 |
|
4½~5⅝ |
8 |
|
5½~6⅝ |
9 |
|
6½~7⅝ |
10 |
|
7½~8⅝ |
11 |
|
8½~9⅝ |
12 |
|
9½~10⅝ |
13 |
|
10½~11⅝ |
14 |
|
11½~12⅝ |
15 |
|
12½~13⅝ |
16 |
|
13½~14⅝ |
17 |
|
14½~15⅝ |
18 |
|
